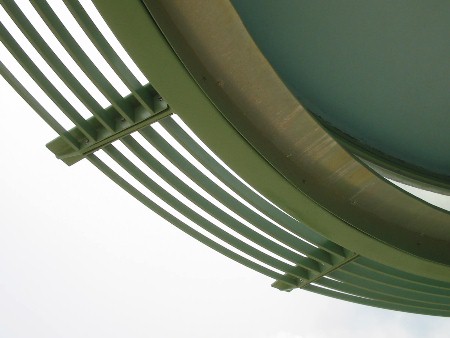

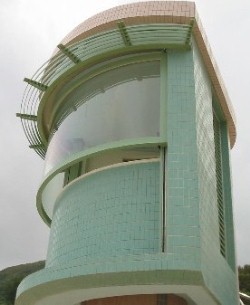

ASD 2004 Beach Look-Out New Model
(adopt Kentsway Kenton-Shape S-1130.)
Kentsway developed Kenton-Shape S-1130 sun shades control system which
combine the conventional sun-control concept, and modified by design
accurately the light ray path during particularly time throung a day.
The system allow only desire sun light passing through the shade
system go through the interior as the Sun moves along through the day.
you simply specify the location and by checking the sun movement
at your place, you can then control sun light to your desire.
Solor control glazing panel can also be added on top of shape. this can
block off the damaged energy (u.v. and excess radiation) of sunlight
and let you enjoy the good part of the sun light.
Kentsway's design to focus on environmental protection and encourage
renewable energy.
 |

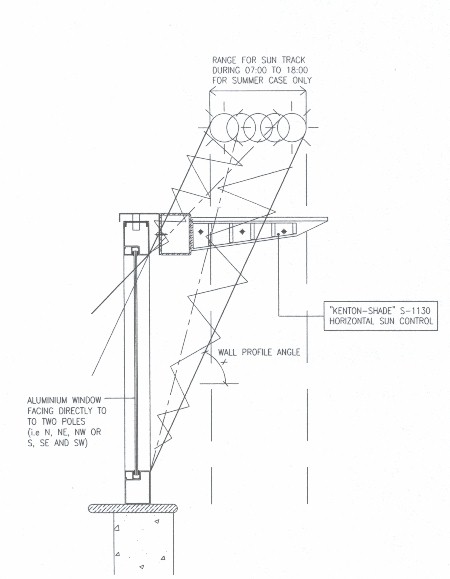

How to design your sun shades
1. Specify the shades location at your building
in term of the orientation and level from
ground floor.
2. Specify the location of your site geographically
with longitude and latitude ordination.
3. Find out the Sun track ruler from 07:00 to 18:00
for both summer and winter, mark it on scaled
drawing.
4. Prelimiary design the sun shades profile, design
the blades of shade with section profile try to
block the sunlight.
5. Check whether the Sun light ray beam can be
blocked by the blades, if not adjust the blade
to suit, Consider both the morning and evening
sun position and summer/winter effects, Do the
iterative excerise until desire blockage of sun
light is obtained for the complete sun movement.
6. Sun shade blades can be in different shape,
profiles and color to specified Architectural
design.
|
|
